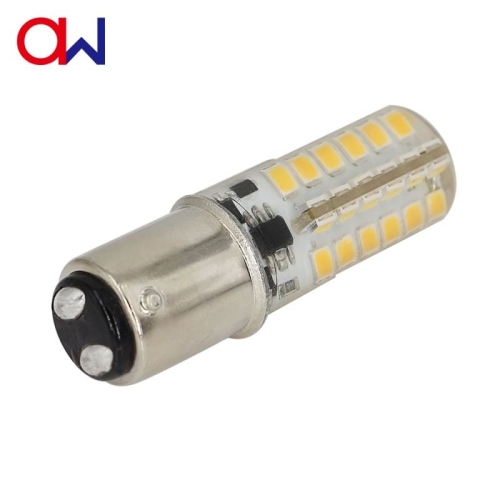

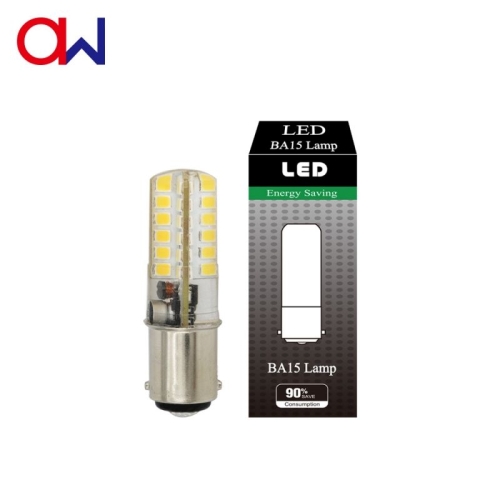

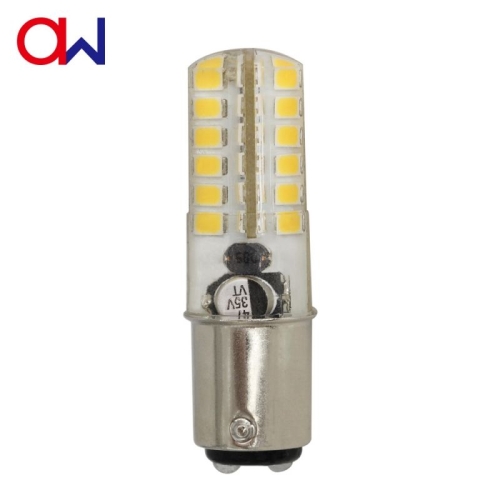

BA15D 10V 30V 3W Led Light Bulbs

  • SKU: BA15D-48LED-3W
  • Bulb Type(Cap base): BA15D
  • Lamp Power(W): 2.2W
  • Wattage equivalent: 22W
  • Voltage(V): 10-30V DC
  • Lumen: 240lm
  • Color Temperature: 3000K/6000K
  • Dimmable: Yes
  • LED Type/Amount: 2835 SMB / 48 LEDs
  • Material: Ceramic+PC
Ask Quote
General Information
AW Lamp warranty 2-Year
Certificates CE EMC,CE LVD
Energy efficiency class A++
Normal lifetime(h) >25,000 hours
Switching cycles (times) >30000 X
Market Segment Commercial indoor, Residential indoor
Technical Information
Wattage 2.2W
Replaces (Watt) 22W
Voltage(V) 10-30V DC
Lumen 240lm
Color Temperature 3000K/6000K
Dimmable Yes
Beam angle 360°
Emitting Color Warm White/Cool White
Color Rendering Index >80
Warm-up to 100% <0.5 s
Environment Temperature -20℃ ~ +45℃
Energy Consumption 2.2kwh/1000h

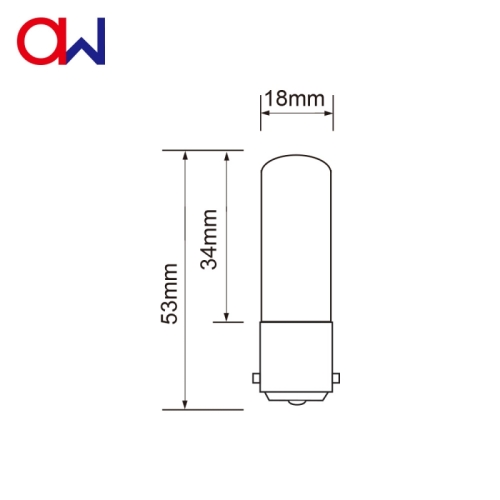

Dimensions
Height(mm) 53
Diameter(mm) 18
Weight(g) 12.2
Shape shape
Material Ceramic+PC
  • Save energy up to 88% compared with filament lamp
  • High lumen output
  • Normal lifetime of >25,000h
  • Instant start

Description BA15D 10V 30V 3W Led Light Bulbs | LED Bulb Replace perfect 40W halogen bulb

This LED bulb has a Capsule shape and works on 10-30V DC volts. Changing to LED offers many advantages!

You can save up to 90% on your energy and maintenance costs due to the low energy consumption of 2.2W and the long lifetime of >25,000 hours. LED bulbs don't produce much heat or emit any UV-radiation.

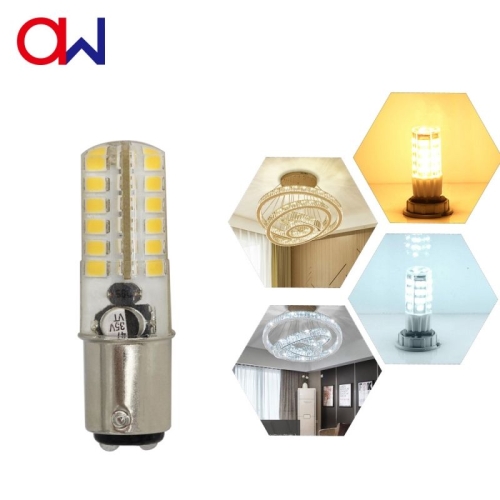

Areas of application:

- Wall fixtures, crystal lamps, mini pendant lights and decorative lights

- Shops, Hotels, Cinemas, Offices

- Ideal for desk lamps and cabinet lighting

Product benefits:

- Long lifetime of up to 25,000 h

- Huge energy saving

- Minimum maintenance cost
