G4-D02

  • SKU: G4-D02
  • Bulb Type(Cap base): G4
  • Lamp Power(W): 1.5W
  • Wattage equivalent: 20 W
  • Voltage(V): 10-30V DC
  • Lumen: 180-200lm
  • Color Temperature: 2700K/3000K/6000K
  • Dimmable: Yes
  • LED Type/Amount: COB / 1 LEDs
  • Material: Silicon
Ask Quote
General Information
AW Lamp warranty 2-Year
Certificates CE,ROHS,ERP,ETL,REACH
Energy efficiency class A++
Normal lifetime(h) >25,000 hours
Switching cycles (times) >30000 X
Market Segment Commercial indoor, Residential indoor
Technical Information
Wattage 1.5W
Replaces (Watt) 20 W
Voltage(V) 10-30V DC
Lumen 180-200lm
Color Temperature 2700K/3000K/6000K
Dimmable Yes
Beam angle 360°
Emitting Color Warm White/Cool White
Color Rendering Index >80
Warm-up to 100% <0.5 s
Environment Temperature -20℃ ~ +45℃
Energy Consumption 1.5kwh/1000 h
Dimensions
Height(mm) 38.5
Diameter(mm) 10
Weight(g) 2.3
Shape shape
Material Silicon
  • Save energy up to 88% compared with filament lamp
  • High lumen output
  • Normal lifetime of >25,000h
  • Instant start

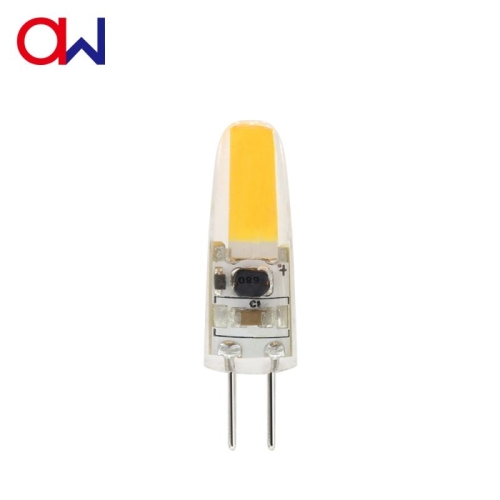

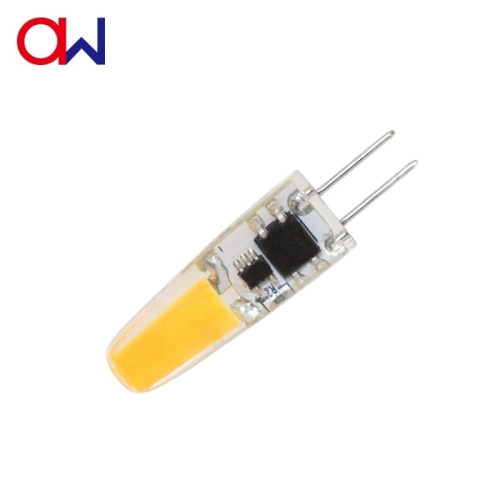

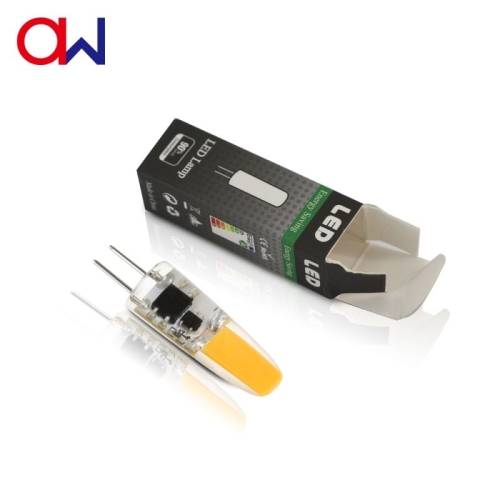

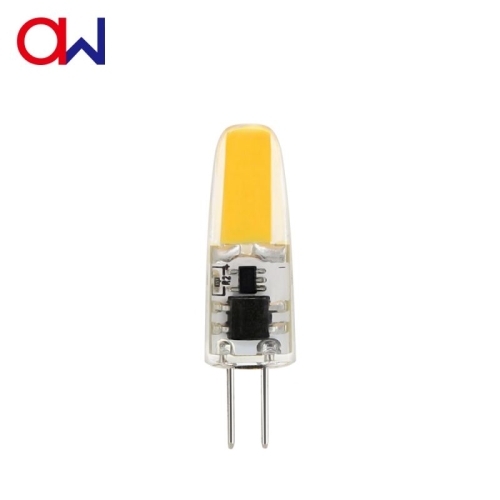

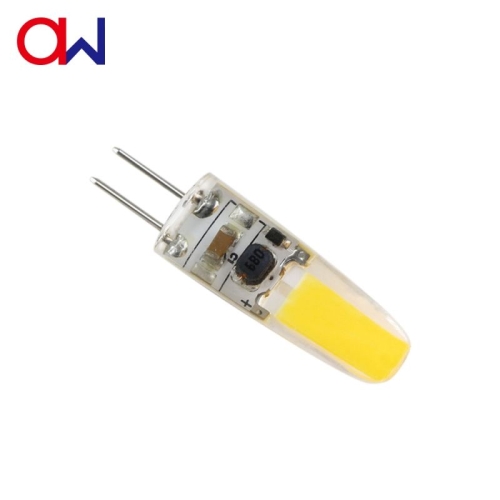

Description G4-D02 | LED Bulb Replace perfect 40W halogen bulb

This LED bulb has a Capsule shape and works on 10-30V DC volts. Changing to LED offers many advantages!

You can save up to 90% on your energy and maintenance costs due to the low energy consumption of 1.5W and the long lifetime of >25,000 hours. LED bulbs don't produce much heat or emit any UV-radiation.

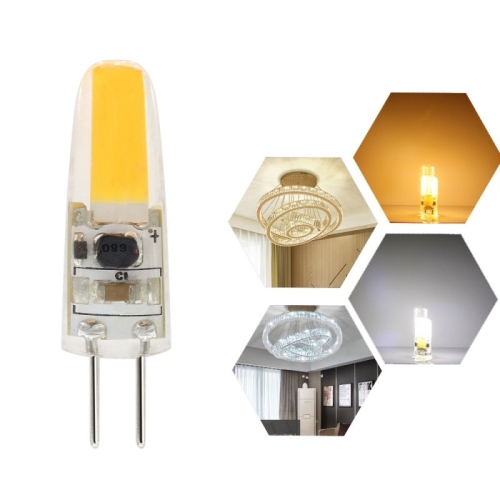

Areas of application:

- Wall fixtures, crystal lamps, mini pendant lights and decorative lights

- Shops, Hotels, Cinemas, Offices

- Ideal for desk lamps and cabinet lighting

Product benefits:

- Long lifetime of up to 25,000 h

- Huge energy saving

- Minimum maintenance cost
